AC Circuit Containing Resistance Only

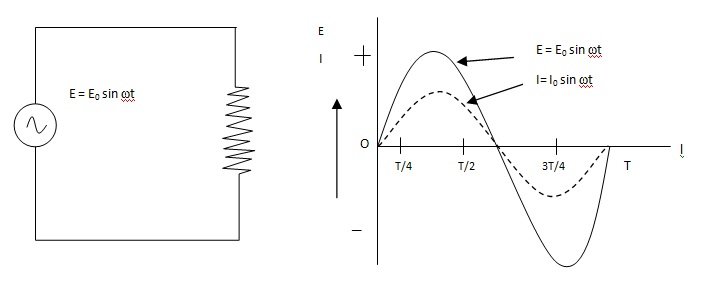

Suppose an alternating sinusoidal voltage E = E0 ejωt is applied across a pure resistance R.

The current through the resistance at any instant t is,
        I = E/R = E0ejωt /R = I0 ejωt

Here,         I0 = E0 /R.

Actual value of Current
        = Imaginary part of I0 ejωt = I0 sin ωt.
. :        I = I0 sin ωt
Hence the current is in phase with the driving voltage.
